Jib Crane – Precision Japanese Design for Efficient Material Handling
Endo Kogyo India Pvt. Ltd., a 100% subsidiary of Endo Kogyo Co. Ltd., Japan, offers a wide range of Jib Cranes engineered for ergonomic and reliable material handling. Designed with lightweight aluminium rails and Japanese precision technology, these cranes ensure smooth, safe, and efficient load transfer for industrial and assembly environments.
Our Jib Cranes are suitable for diverse workstations, manufacturing units, and warehouses—providing effortless 360° rotation and compatibility with Electric Chain Hoists, Air Hoists, and Air Balancers for flexible lifting operations.
Features
- Floor Fixed Post Type Design: Stable and durable construction ideal for industrial use.
- Aluminium Rail Track: Provides smoother movement than conventional steel rails or I-beams.
- 360° Slewing Rotation: Full rotational range allows for safe and precise load positioning.
- Compact & Ergonomic: Space-efficient design perfect for confined work areas.
- Seamless Integration: Compatible with all Endo lifting products, including hoists and balancers.
- Low Maintenance: Corrosion-resistant components ensure long service life.
Product Image

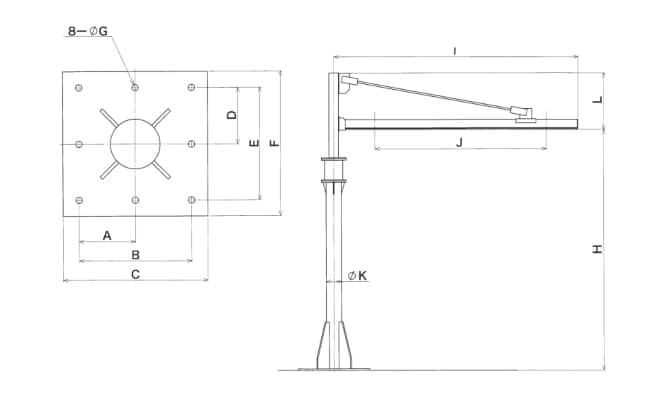

Specifications
| Model |
A (mm? |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
F (mm) |
G (mm) |
H (mm) |
I (mm) |
J (mm) |
K (mm) |
L (mm) |
Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| EJS-2-20-300 | 230 | 460 | 500 | 230 | 460 | 500 | φ20 | 2,000 | 2,095 | 1,140 | φ216.8 | 700 | 300 |
| EJS-2-30-265 | 230 | 460 | 500 | 230 | 460 | 500 | φ20 | 3,000 | 2,095 | 1,315 | φ216.8 | 700 | 265 |
| EJS-3-20-170 | 230 | 460 | 500 | 230 | 460 | 500 | φ20 | 2,000 | 3,095 | 2,235 | φ216.8 | 900 | 170 |
| EJS-3-30-150 | 230 | 460 | 500 | 230 | 460 | 500 | φ20 | 3,000 | 3,095 | 2,235 | φ216.8 | 900 | 150 |
| EJB-2-20-400 | 280 | 560 | 600 | 280 | 560 | 600 | φ20 | 2,000 | 2,110 | 1,140 | φ267.4 | 700 | 400 |
| EJB-2-30-400 | 280 | 560 | 600 | 280 | 560 | 600 | φ20 | 3,000 | 2,110 | 1,140 | φ267.4 | 700 | 400 |
| EJB-3-30-250 | 280 | 560 | 600 | 280 | 560 | 600 | φ20 | 3,000 | 3,110 | 2,235 | φ267.4 | 900 | 250 |
| EJB-4-30-120 | 280 | 560 | 600 | 280 | 560 | 600 | φ20 | 3,000 | 4,110 | 3,235 | φ267.4 | 900 | 120 |
Benefits
- Effortless Handling: Smooth movement reduces operator fatigue and boosts productivity.
- Precision Control: Ideal for assembly and workstation applications.
- Versatile Mounting Options: Available in floor-mounted, wall-mounted, and ceiling-mounted variants.
- High Safety Standards: Engineered to comply with Japanese safety and performance norms.
- Customizable: Boom length, height, and load capacity can be tailored to suit application needs.
- Corrosion-resistant components ensure long service life.
Why Choose Endo Jib Cranes
- Backed by Japanese engineering expertise from Endo Kogyo Co. Ltd., Japan
- Proven reliability across multiple industrial sectors
- Easy integration with Electric Chain Hoists, Air Hoists, and Balancers
- Local service, spare parts, and technical support in Pune, India
