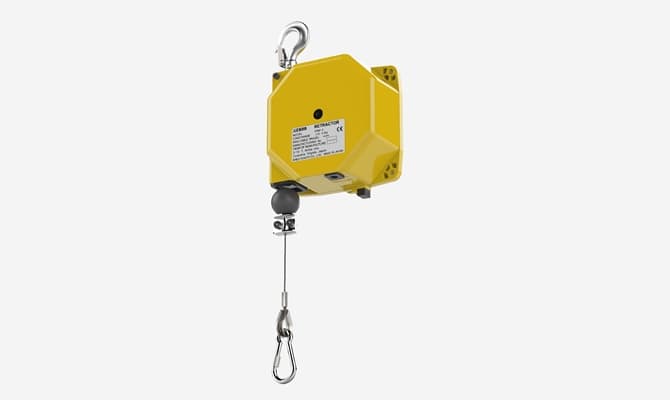

Retractor ERM Series
Features
- The retractor is a spring balancer whose tension of a spring is changed with an extension of a wire rope.
- Maximum wire rope travel is relative to the setting of the spring tension. (see catalog).
- Fall-arrest device is equipped on ERM-4S, 6S, and 8S.
- The ratchet stopper device can be turned on or off according to your requirement.
- The top hook can be detached without disassembling the retractor body.
- ERM-2 is a successor model to ER-3A/3B.
- ERM-4 is a successor model to ER-5A/5B.
Gallery
Specification
Model |
Fall prevention device |
Capacity (kg) |
Wire rope travel (m)? |
Mass (kg) |
---|---|---|---|---|
ERM-2 | - | 1.0?2.0 | 3.5 | 1.8 |
ERM-4 | - | 2.0?4.0 | 3.5 | 2.0 |
ERM-6 | - | 4.0?6.0 | 2.5 | 2.0 |
ERM-8 | - | 6.0?8.0 | 2.5 | 2.0 |
ERM-4S | Yes | 2.0?4.0 | 3.5 | 2.0 |
ERM-6S | Yes | 4.0?6.0 | 2.5 | 2.0 |
ERM-8S | Yes | 6.0?8.0 | 2.5 | 2.0 |
