Zenmai Motor

Feature:


The Zenmai motor allows the dynamic power of springs to be used more directly for a wider range of applications. The motor shaft can be connected directly to a component, liminating the need for an intermediate wire rope or drum.


Construction:

1.Casing

Casing stores Zenmai (spring).

2.Mechanism to prevent reverse winding

 Prevents reverse winding after the spring has completely unwound and the number of winding has reached zero.

3.Axe shaft (option)

Transfers the rotation to the attached component. (option)

4.Mechanism to prevent excess winding

Prevents damage that could be caused by winding the spring beyond its maximum number of permitted rotations.

5.Zenmai (spring)

        Provides the driving force for the motor.



Specification:

Single type 1 spring

Model

Torque(Nm) Max. rotation Mass(kg)

ZS-08

0.8 15 1.3

ZS-16

1.6 12

ZS-24

2.4 10



Double type 2 Springs

Model

Torque(Nm) Max. rotation Mass(kg)

ZW-16

1.6 15 2.3

ZW-32

3.2 12

ZW-48

4.8

10



Option:







Part No

Name Model

LBP001956

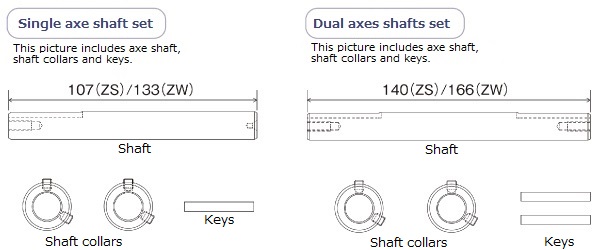

Dual axes shafts set



 This picture includes axe shaft, shaft collars and keys.



Part No.



Name Model

LBP001975

Shaft collars
(2 collars and 4 screws attached)
Type ZS, Type ZW



Installation Guidance:

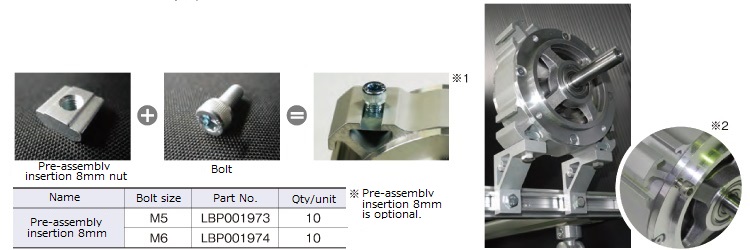

To install the main body, use grooves on body 1 or M5 bolt hole on the body flange side?2. We recommend commercial pre-assembly insertion 8mm nut for aluminum frame to groove.






Example Of Operations:

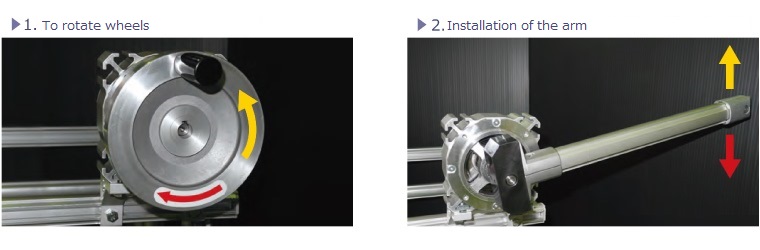

1.To rotate wheels

Rotate the shaft in the direction of the red arrow.
When you release your hand, the shaft will rotate in the direction of the yellow arrow on the opposite side.

2.Installation of the arm

Push down the arm in the direction of the red arrow.
When you release your hand, the energy in the yellow arrow will occur.





List Of Product Application:

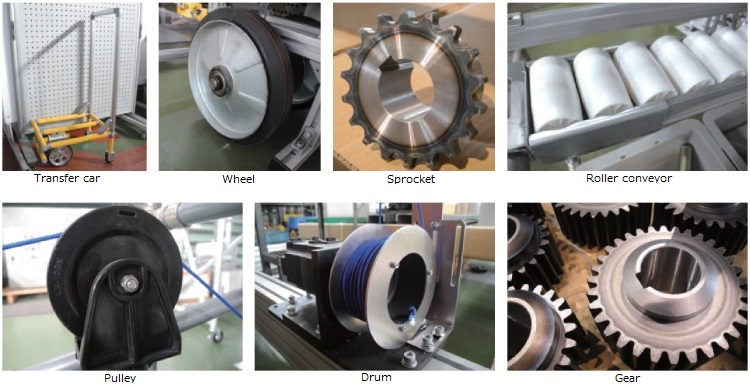

(When used with a variety of applications,) it can be used as a power resources to wide range of systems.
