Rail System
Features
You can move suspended loads flexibly without effort. This is an ideal transfer system with aluminum rails.
Since the system quickly follows the movement of the lifting equipment, you can move the load along the shortest route and reduce the operation time.
The components are available in kits and can be connected using bolts to allow easy assembly and construction.
Lower running resistance and improved controllability are achieved by the combination of the aluminum rails and resin wheels.

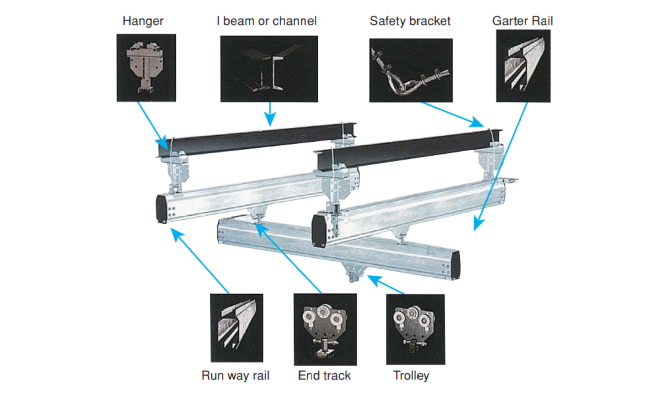

Product Image
Rail System
Contact Us
Contact Us for Detailed Specifications & Drawings Click here
Specifications
Model |
Shape Dimension (mm) |
Unit Weight (kg/m) |
Rail Height (inch) |
---|---|---|---|
TR2000 |
![]() |
3.6 | 2 |
RAD4110 |
![]() |
6.44 | 4 |
RAD7510 |
![]() |
12.26 | 8 |
Allowable load
Rail length (m) |
TR2000 Recommended load(kg) |
RAD4110 Recommended load(kg) |
RAD7510 Recommended load(kg) |
---|---|---|---|
1 | 200 | 500 | 500 |
2 | 100 | 500 | 500 |
3 | 45 | 250 | 500 |
4 | 25 | 140 | 500 |
5 | 16 | 90 | 470 |
6 | 11 | 60 | 330 |
